150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System

I'm Online Chat Now

150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System

150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System

Large Image :  150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System

Product Details:
Place of Origin: Zhejiang, China
Model Number: 1702-1707
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $0.06/pieces >=20 pieces
Packaging Details: Carton
Supply Ability: 100 Piece/Pieces per Day

150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System

Description
Type: Sprinklers Application: Agriculture Irrigaiton
Working Pressure: 150-300KPA Material: Engineering Plastic
Spray Radius: 2.5-2.7M Advantage: Reliable
Connection: Quick Connect Feature: Endurable
Keyword 1: Watering Rotating Sprinkler Keyword 2: Sprinkler Plastic
Keyword 3: Garden Sprinklers Port: Ning Bo

Product Description

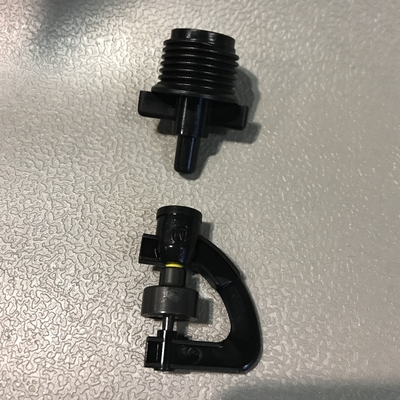

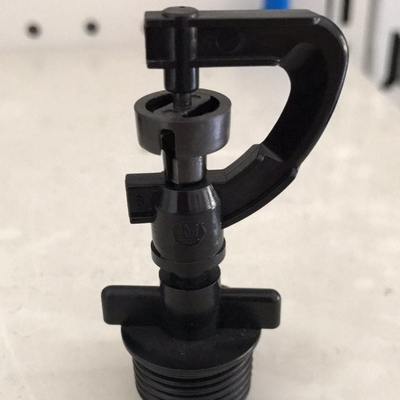

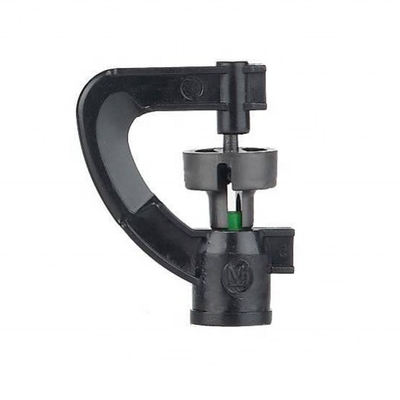

This product consists of three parts: nozzle, bracket and rotary nozzle.
Different color nozzles bring different flow and range. Accurate runner design, injection molding and installation process have achieved uniform spraying effect.
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 0
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 1
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 2
Water pressure
(Mpa)
150kpa
200kpa
250kpa
300kpa
NO.
Nozzie color
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
1702
Blue
37.8
2.5
45
2.6
51.0
2.7
55.6
2.7
1703
Green
53.9
2.5
64.4
2.7
73.3
2.7
79.4
2.8
1704
Red
72.8
2.5
86.1
2.7
97.8
2.8
107.2
3.0
1705
Yellow
90.0
2.5
105.6
2.8
116.1
3.0
125.0
3.2
1706
Brown
115.8
2.5
136.7
3.0
150.0
3.2
162.5
3.5
1707
Gray
147.9
2.5
175.0
3.0
197.5
3.2
221.7
3.5
Note: tested in the breezeless outdoors, 0.4m above the ground. We suggested that water pressure should above 0.2 Mpa for better performance.
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 3
Interface
6mm
QTY
5000pcs/bag
G.W.:
15.5KG
Measure
42*34*30cm
* When hanging upside down, there is a heavy hammer to keep the nozzle vertically downward to prevent the nozzle direction from changing.
* Anti-drip valve can be configured to avoid dripping when the system is turned off.
* Water flows quickly to prevent blockage. The water droplets are fine and evenly distributed.
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 4
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 5
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 6
Specification
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 7
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 8
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 9
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 10
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 11
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 12
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 13
150-300KPA Engineering Plastic G Type Rotation Agricultural Water Sprinkler Irrigation System 14
1. Are you a manufacturer or trading company?

We are a manufacturer, established in 2000, with more than 20 years of experience in manufacturing high quality irrigation equipment.

2. Can you provide samples?

Of course. We can provide free samples, you only have to pay freight cost.

3. How do you guarantee quality?

We always put quality in the first place and always make tests and inspections during the producing, and before shipment.

4. How about your after-sales service?

We will reply within 24 hours about quality problem.
We can give you refund or provide free product for replacement if the goods are faulty.
