G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA

G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA

Large Image :  G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA

Product Details:
Place of Origin: Zhejiang, China
Model Number: 1702-1707
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $0.06/pieces >=20 pieces
Packaging Details: Carton
Supply Ability: 100 Piece/Pieces per Day
Contact Now

G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA

Description
Type: Sprinklers Application: Agriculture Irrigaiton
Color: Picture Shows Working Pressure: 150-300KPA
Material: Engineering Plastic Spray Radius: 2.5-2.7M
Advantage: Reliable Style: Normal
Connection: Quick Connect Feature: Endurable
Keyword: Watering Rotating Sprinkler Port: Ning Bo

Product Description

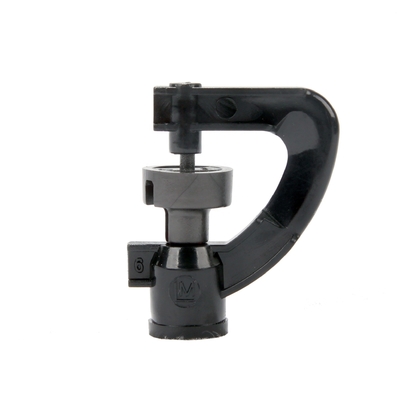

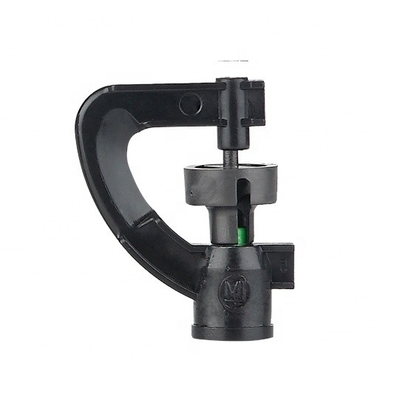

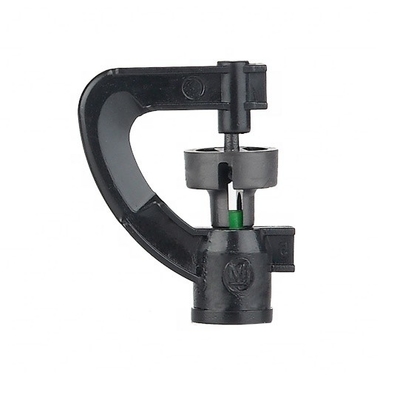

This product consists of three parts: nozzle, bracket and rotary nozzle.
Different color nozzles bring different flow and range. Accurate runner design, injection molding and installation process have achieved uniform spraying effect.
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 0
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 1
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 2
Water pressure
(Mpa)
150kpa
200kpa
250kpa
300kpa
NO.
Nozzie color
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
Flow
(L/H)
Radius
(m)
1702
Blue
37.8
2.5
45
2.6
51.0
2.7
55.6
2.7
1703
Green
53.9
2.5
64.4
2.7
73.3
2.7
79.4
2.8
1704
Red
72.8
2.5
86.1
2.7
97.8
2.8
107.2
3.0
1705
Yellow
90.0
2.5
105.6
2.8
116.1
3.0
125.0
3.2
1706
Brown
115.8
2.5
136.7
3.0
150.0
3.2
162.5
3.5
1707
Gray
147.9
2.5
175.0
3.0
197.5
3.2
221.7
3.5
Note: tested in the breezeless outdoors, 0.4m above the ground. We suggested that water pressure should above 0.2 Mpa for better performance.
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 3
Interface
6mm
QTY
5000pcs/bag
G.W.:
15.5KG
Measure
42*34*30cm

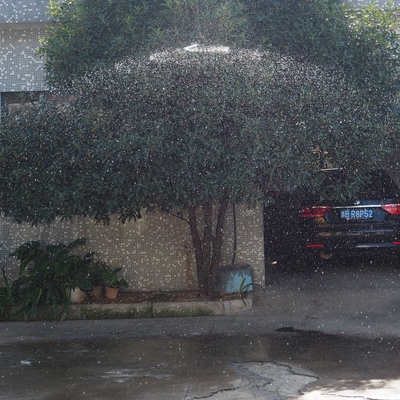

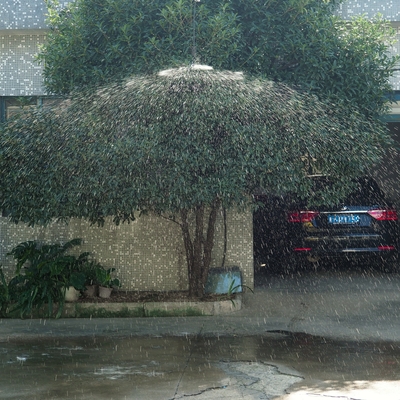

* When hanging upside down, there is a heavy hammer to keep the nozzle vertically downward to prevent the nozzle direction from changing.
* Anti-drip valve can be configured to avoid dripping when the system is turned off.
* Water flows quickly to prevent blockage. The water droplets are fine and evenly distributed.
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 4
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 5
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 6
Specification
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 7
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 8
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 9
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 10
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 11
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 12
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 13
G Type Rotary Water Sprinkler Micro for Agriculture and Forestry Irrigation at 150-300KPA 14
1. Are you a manufacturer or trading company?

We are a manufacturer, established in 2000, with more than 20 years of experience in manufacturing high quality irrigation equipment.

2. Can you provide samples?

Of course. We can provide free samples, you only have to pay freight cost.

3. How do you guarantee quality?

We always put quality in the first place and always make tests and inspections during the producing, and before shipment.

4. How about your after-sales service?

We will reply within 24 hours about quality problem.
We can give you refund or provide free product for replacement if the goods are faulty.
