G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation

Name: G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation
Brand: G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation
SKU: 1702-1707
Price: 0.05 USD
Availability: InStock
Rating: 5 (101 reviews)

All Products

Medium Range Sprinkler
(150)

Micro Irrigation Sprinkler
(196)

Agriculture Irrigation Sprinkler
(45)

Drip Irrigation Tools
(15)

Agriculture Irrigation Accessories
(21)

Agriculture Irrigation Kit And Combination
(4)

Ungrouped
(7)

I'm Online Chat Now

G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation

Large Image : G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	1702-1707

Payment & Shipping Terms:

Minimum Order Quantity:	5000 pieces
Price:	$0.05/pieces
Packaging Details:	Carton

Contact Now

G type Quick Connect Agriculture and Forestry Micro Sprinkler for Irrigation Rotation

Description

Type:	Sprinklers	Application:	Agriculture Irrigaiton
Color:	Picture Shows	Working Pressure:	150-300KPA
Material:	Engineering Plastic	Spray Radius:	2.5-2.7M
Advantage:	Reliable	Style:	Normal
Connection:	Quick Connect	Feature:	Endurable
Keyword:	Watering Rotating Sprinkler

Product Description

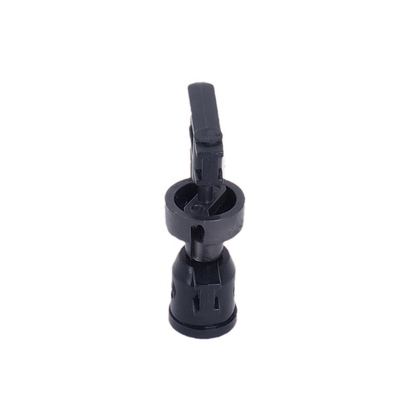

This product consists of three parts: nozzle, bracket and rotary nozzle.

Different color nozzles bring different flow and range. Accurate runner design, injection molding and installation process have achieved uniform spraying effect.

Water pressure (Mpa)			150kpa			200kpa			250kpa	300kpa
NO.	Nozzie color	Flow (L/H)	Radius (m)	Flow (L/H)	Radius (m)	Flow (L/H)	Radius (m)	Flow (L/H)	Radius (m)
1702	Blue	37.8	2.5	45	2.6	51.0	2.7	55.6	2.7
1703	Green	53.9	2.5	64.4	2.7	73.3	2.7	79.4	2.8
1704	Red	72.8	2.5	86.1	2.7	97.8	2.8	107.2	3.0
1705	Yellow	90.0	2.5	105.6	2.8	116.1	3.0	125.0	3.2
1706	Brown	115.8	2.5	136.7	3.0	150.0	3.2	162.5	3.5
1707	Gray	147.9	2.5	175.0	3.0	197.5	3.2	221.7	3.5

Note: tested in the breezeless outdoors, 0.4m above the ground. We suggested that water pressure should above 0.2 Mpa for better performance.

Interface	6mm
QTY	5000pcs/bag
G.W.:	15.5KG
Measure	423430cm

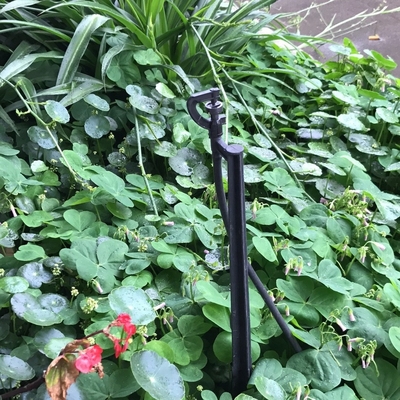

* When hanging upside down, there is a heavy hammer to keep the nozzle vertically downward to prevent the nozzle direction from changing.
* Anti-drip valve can be configured to avoid dripping when the system is turned off.
* Water flows quickly to prevent blockage. The water droplets are fine and evenly distributed.

Specification

1. Are you a manufacturer or trading company?

We are a manufacturer, established in 2000, with more than 20 years of experience in manufacturing high quality irrigation equipment.

2. Can you provide samples?

Of course. We can provide free samples, you only have to pay freight cost.

3. How do you guarantee quality?

We always put quality in the first place and always make tests and inspections during the producing, and before shipment.

4. How about your after-sales service?

We will reply within 24 hours about quality problem.
We can give you refund or provide free product for replacement if the goods are faulty.
