Agricultural Irrigation 6mm Upright Position Rotary Water Sprinkler for Rotating Lawn

Large Image : Agricultural Irrigation 6mm Upright Position Rotary Water Sprinkler for Rotating Lawn

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	1101B--1107B

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	$0.12/pieces >=20 pieces
Packaging Details:	pcs
Supply Ability:	100 Piece/Pieces per Week

Contact Now

Agricultural Irrigation 6mm Upright Position Rotary Water Sprinkler for Rotating Lawn

Description

Type:	Sprinklers	Product Name:	Plastic Rotary Sprinkler -Irrigation
Application:	Agriculture Irrigaiton	Material:	Engineering Plastic
Feature:	Endurable	Size:	6mm
Radius:	3-4.8m	Pressure:	150-300kpa
Style:	Normal	Color:	Picture Shows
Package:	Nomal Trade Carton	Port:	Ning Bo

Packing&Delivery

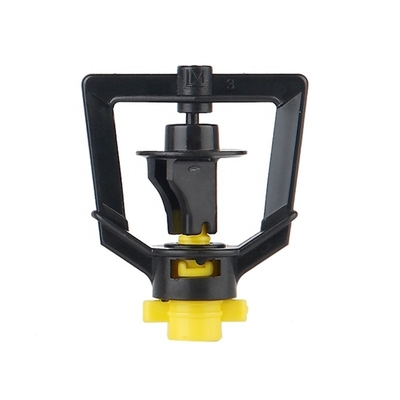

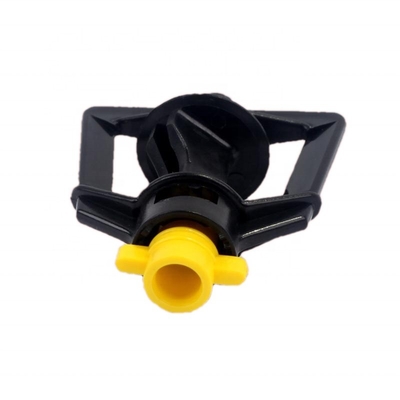

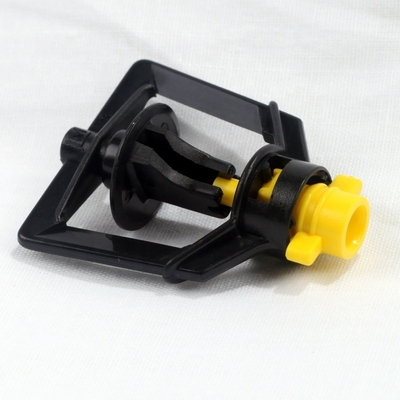

This product consists of three parts: nozzle, bracket and rotary nozzle. Different color nozzles bring different flow and range. Accurate runner design, injection molding and installation process have achieved uniform spraying effect Normal installed, widely used in various irrigation systems for water and fertilizer efficiency Precise runner system design leads to excellent spry evenness Wedge-shaped section can minimize blind zones

NO	Water pressure (Mpa)	0.15	0.2	0.25	0.3
1101A Black	Flow L/H Radius M	22.8 2.4	26.7 2.5	30.6 2.6	33.9 2.8
1102A Blue	Flow L/H Radius M	36.7 2.8	43.9 3.0	50.0 3.1	55.6 3.2
1103A Green	Flow L/H Radius M	53.9 2.8	64.4 3.0	73.9 3.2	81.7 3.4
1104A Red	Flow L/H Radius M	72.2 3.0	86.0 3.2	98.3 3.4	109.7 3.5
1105A Yellow	Flow L/H Radius M	96.7 3.2	115.0 3.4	130.8 3.7	145.8 3.8
1106A Brown	Flow L/H Radius M	120.0 3.5	143.3 3.6	162.5 4.0	179.2 4.2
1107A Gray	Flow L/H Radius M	144.2 3.5	170.8 3.6	193.3 4.0	216.7 4.2

Note: The ground-inserted nozzle is 0.4m above the ground, and it is tested under the condition of no wind outdoors. In order to achieve ideal spraying uniformity, it is recommended to use water pressure above 200Kpa.

INTERFACE	6MM INNER CONIC
QTY	2500 PCS/CTN
G.W.	12KG
MEAS	423430CM

● Stable spraying and uniform water distribution. ● Easy installation and maintenance, low price. ● Adopt high-quality engineering plastics, with strong wear resistance and long service life. Type of interface: 6mm inner cone interface, which can be used with a variety of products with 6mm outer cone interface such as ground plug (5205), adapter (5195-B) and single barb connector (5142).
