Product Details:
|

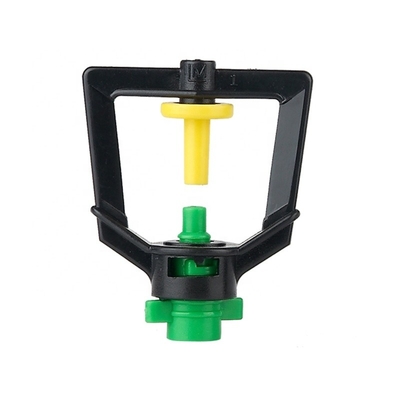

| Type: | Sprinklers | Application: | Agriculture Irrigaiton |
|---|---|---|---|
| Working Pressure: | 150-300KPA | Material: | Engineering Plastic |
| Spray Radius: | 0.9-1.5M | Advantage: | Reliable |
| Connection: | Quick Connect | Feature: | Endurable |
| Keyword: | Rotating Sprinkler | Keyword 1: | Irrigation Sprinkler |
| Keyword 2: | Agricultural Sprinkler |

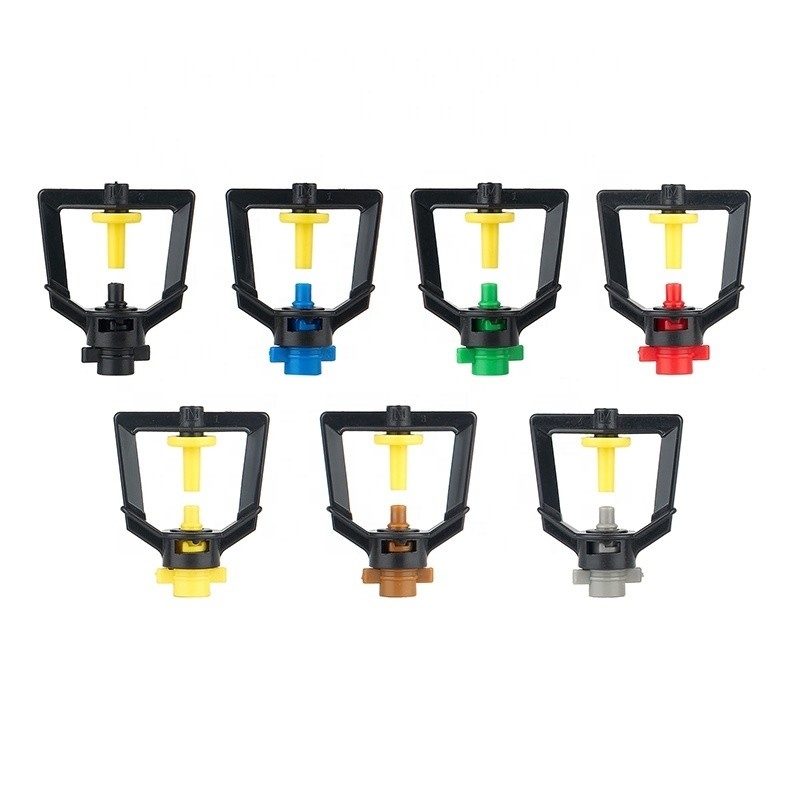

NO | water pressure(Mpa) | 0.15 | 0.20 | 0.25 | 0.3 | ||
1201A BLACK | FIOW L/H | 22.8 | 26.7 | 30.6 | 33.9 | ||
1201A black | REDIUS M | inverted position : 1.0~1.1 | upright position: 0.9~1.0 | ||||
1202A BLUE | FIOW L/H | 36.7 | 43.9 | 50.0 | 55.6 | ||
1202A blue | REDIUS M | inverted position : 1.1~1.2 | upright position: 1.0~1.1 | ||||
1203A GREEN | FIOW L/H | 53.9 | 64.4 | 73.9 | 81.7 | ||
REDIUS M | inverted position : 1.1~1.3 | upright position: 1.1~1.2 | |||||
1204A RED | FIOW L/H | 72.2 | 86.1 | 98.3 | 109.7 | ||
REDIUS M | inverted position : 1.2~1.3 | upright position: 1.1~1.2 | |||||
1205A YELLOW | FIOW L/H | 96.7 | 115.0 | 130.8 | 145.8 | ||
REDIUS M | inverted position : 1.2~1.4 | upright position: 1.1~1.3 | |||||
1206A BROWN | FIOW L/H | 120.0 | 143.3 | 162.5 | 179.2 | ||
REDIUS M | inverted position : 1.3~1.4 | upright position: 1.2~1.3 | |||||
1207A GRAY | FIOW L/H | 144.2 | 170.8 | 193.3 | 216.7 | ||
REDIUS M | inverted position : 1.3~1.5 | upright position: 1.2~1.4 | |||||
INTERFACE | 6MM |
QTY | 3000PCS/CTN |
GW | 12.5KG |
MEAS | 42*34*30 |
