Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation

I'm Online Chat Now

Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation

Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation

Large Image :  Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation

Product Details:
Place of Origin: Zhejiang, China
Model Number: 1201A-1207A
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $0.12/pieces >=20 pieces
Packaging Details: Carton
Supply Ability: 100 Piece/Pieces per Day

Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation

Description
Type: Sprinklers Sprinkler Type: Water Pressure Control
Application: Agriculture Irrigaiton Working Pressure: 150-300KPA
Material: Engineering Plastic Spray Radius: 0.9-1.5M
Advantage: Reliable Connection: Quick Connect
Feature: Endurable Keyword: Rotating Sprinkler
Keyword 1: Atomization Sprinkler Keyword 2: 360 Rotating Sprinkler
Port: Ning Bo

Packing&Delivery

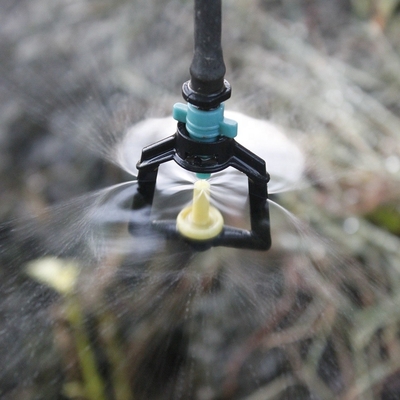

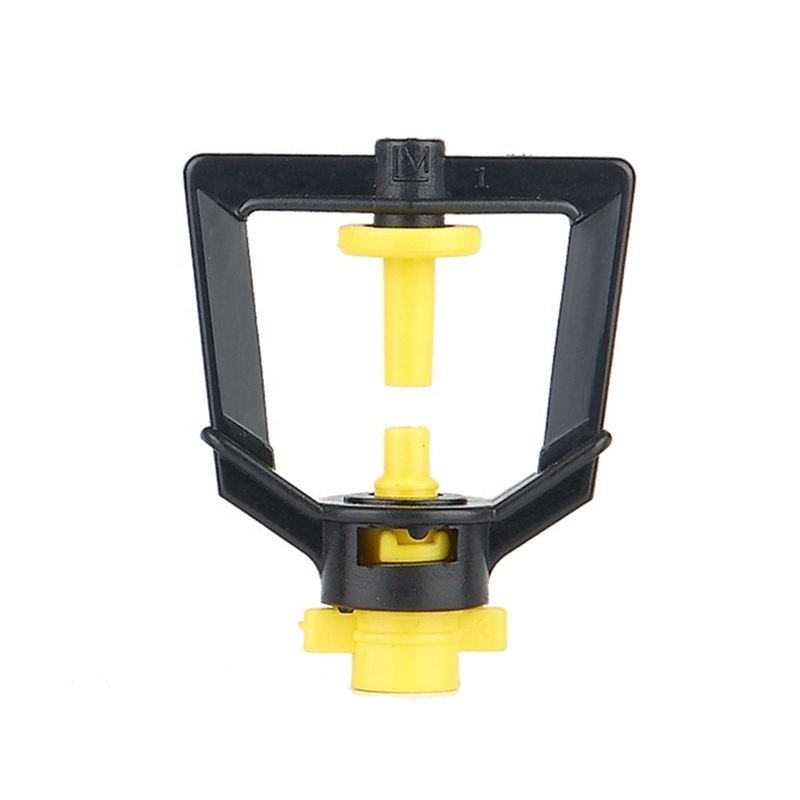

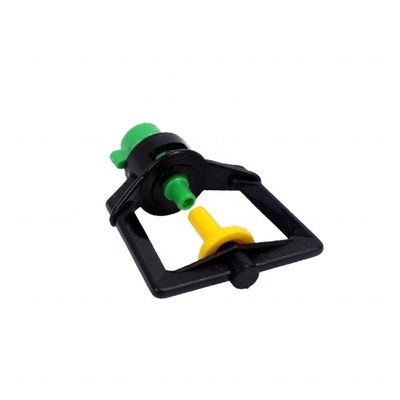

This product consists of three parts: nozzle, bracket and rotary nozzle. Different color nozzles bring different flow and range. Accurate runner design, injection molding and installation process have achieved uniform spraying effect.
Wedge-shaped frame interface design minimizes blind spots The smooth and flat refractive surface ensures the fine and uniform fog droplets High-quality anti-aging materials are used to ensure the high performance and long life of the products
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 0
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 1

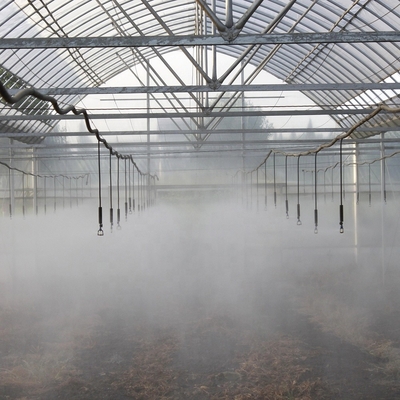

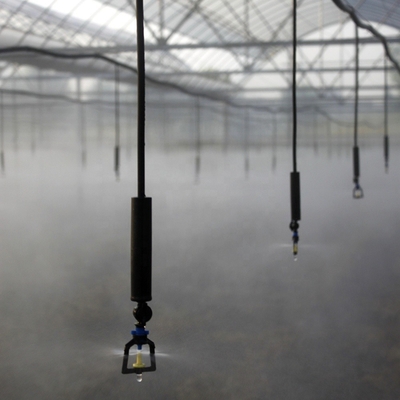

It is mostly used in greenhouse micro-spraying, courtyard irrigation, garden nursery irrigation, ground seedling water spraying and other fields, as well as flowers, fungi, vegetables, seedlings, medicinal materials and other places where temperature and humidity need to be controlled
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 2
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 3
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 4
NO
water pressure(Mpa)
0.15
0.20
0.25
0.3
1201A
BLACK
FIOW      L/H
22.8
26.7
30.6
33.9
1201A  black
REDIUS   M
inverted position : 1.0~1.1
upright position: 0.9~1.0
1202A
BLUE
FIOW L/H
36.7
43.9
50.0
55.6
1202A blue
REDIUS M
inverted position : 1.1~1.2
upright position: 1.0~1.1
1203A
GREEN
FIOW L/H
53.9
64.4
73.9
81.7
REDIUS M
inverted position : 1.1~1.3
upright position: 1.1~1.2
1204A
RED
FIOW L/H
72.2
86.1
98.3
109.7
REDIUS M
inverted position : 1.2~1.3
upright position: 1.1~1.2
1205A
YELLOW
FIOW L/H
96.7
115.0
130.8
145.8
REDIUS M
inverted position : 1.2~1.4
upright position: 1.1~1.3
1206A
BROWN
FIOW L/H
120.0
143.3
162.5
179.2
REDIUS M
inverted position : 1.3~1.4
upright position: 1.2~1.3
1207A
GRAY
FIOW L/H
144.2
170.8
193.3
216.7
REDIUS M
inverted position : 1.3~1.5
upright position: 1.2~1.4
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 5
INTERFACE
6MM
QTY
3000PCS/CTN
GW
12.5KG
MEAS
42*34*30
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 6
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 7
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 8
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 9
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 10
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 11
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 12
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 13
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 14
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 15
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 16
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 17
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 18
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 19
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 20
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 21
Refractive Atomization Sprinkler for 360-Degree Agriculture and Forestry Irrigation 22
1. Are you a manufacturer or trading company?

We are a manufacturer, established in 2000, with more than 20 years of experience in manufacturing high quality irrigation equipment.

2. Can you provide samples?

Of course. We can provide free samples, you only have to pay freight cost.

3. How do you guarantee quality?

We always put quality in the first place and always make tests and inspections during the producing, and before shipment.

4. How about your after-sales service?

We will reply within 24 hours about quality problem.
We can give you refund or provide free product for replacement if the goods are faulty.
